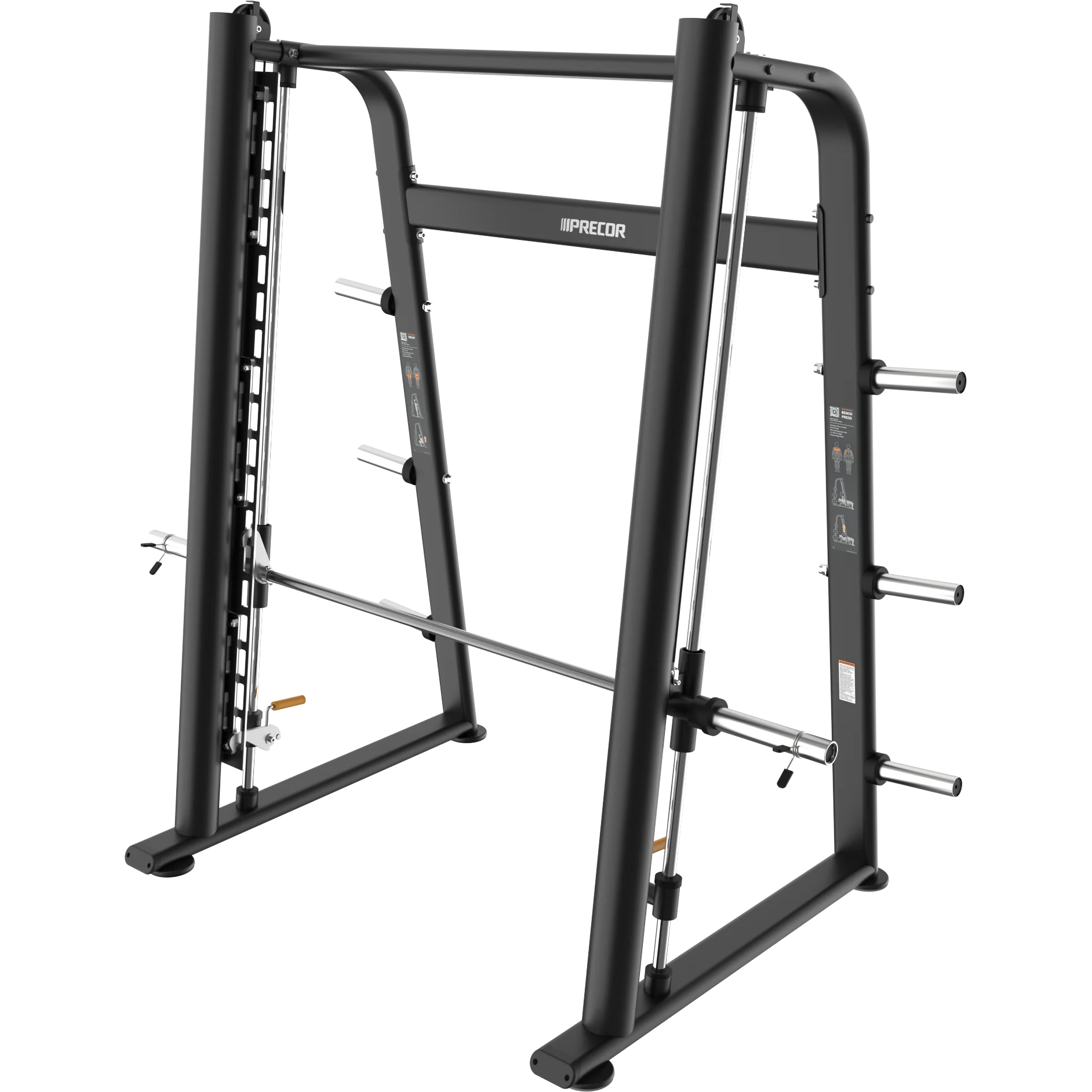

SMITH MACHINE
7 degree bar angle optimizes the body’s natural path of movement, producing a smooth, natural feel.
- The Smith bar glide path optimizes the natural movement of the human body with an angle of 7 degrees.
- An innovative design enables the Smith bar to accommodate a higher weight capacity, while also providing a low start weight of 11 lb / 5 kg.
- Exercisers can now quickly and easily adjust the safety stops from the workout position.
Color Options
| Frame |
|---|
VBR6802 Specifications
Dimensions | ||
| Dimensions (L ˣ W ˣ H) | 51 ˣ 85 ˣ 86 in / 130 ˣ 216 ˣ 218 cm | |
Weight | ||
| Weight | 408 lb / 185 kg | |
| Max User Weight | 300 lb / 136 kg | |
Features | ||
| Frame Colors | Black Pearl | |
| Frame & Finish | Heavy-duty steel tubing is welded in all structural areas to withstand the most severe environments. Powder coated frame. | |
| Regulatory | EN957, ASTM | |
Additional Features | ||
| Additional Features | Max Load Weight: 264 lb / 119 kg Starting Weight: Smith Bar Assembly (unloaded) 11 lb / 5 kg Glide Path Angle: 7 degrees Length of Smith Bar Travel: 60.6 in / 154 cm Smith Bar Hook Spacing: 18 Hook positions at 3.6 in / 9.2 cm spacing Head Clearance: 61.5 in / 156 cm Weight Plate Storage Horns: Six (6) horns at 7.8 in / 20 cm in length Storage Capacity: Four 55 lb / 25 kg weight plates per horn = 1,320 lb / 600kg max Recommended Plates: 2 x 5 lb, 2 x 10 lb, 4 x 25 lb, 4 x 45 lb | |
Resources | ||
| Warranty | View Warranty Details | |
| Product Documentation | Product Documentation | |
